Montrae Mining Precision Machine Workshop is ideally located between Melbourne and Sydney, based in Albury/Wodonga. This assures that we will be able to assist and cooperate with clients easily within all areas in a minimal timeframe.
Montrae Mining specialises in machined mining consumables, engineering one off replacement parts and components through reverse engineering or from illustration. We offer a full Computer Aided Design (CAD) service to design original or existing components and parts to solve any machining problem.
At Montrae Mining, attention to detail is second to none. We are committed to job efficiency and fast turnaround to minimise down time. As a team we have extensive combined experience and knowledge across a wide variety of engineering and mining applications.
Our team is highly skilled and qualified and our workshop is equipped with up to date precision equipment that offers reliability and produces high-quality machining results, many times exceeding original equipment manufacturers specifications (OEM). Montrae Mining and our network of associated companies are equipped to handle any size engineering job and have the ability to turn it around quickly.
Montrae Mining design and manufacture:
- Shock-Cusion Subs
- Crossover Subs
- Rotary Deck Bushes
- Side Entry Air Valves
- Bit Sharpening Equipment
- Pipe Breakout Equipment
- General Mining Equipment
All our pin and box threads are cut and checked to certified gauges.
Machine Shop Capacities:

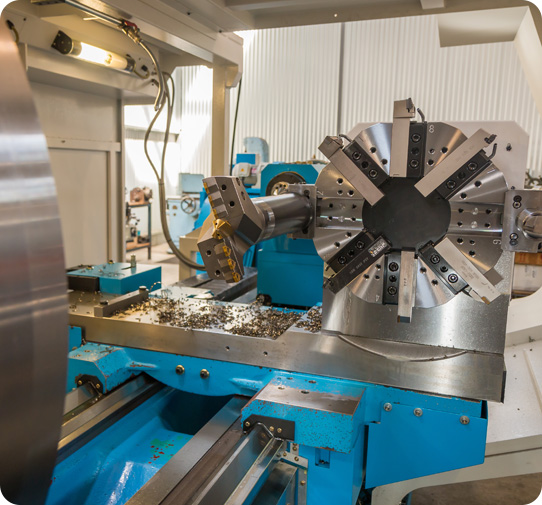

- AJAX CNC 2 AXIS LATHE
- Swing Over Bed 1020mm
- Swing Over Gap 980mm
- Swing Over Saddle 640mm
- Distance Between Centres 2000mm
- Double Chuck Interface
- Spindle Bore 258mm
Quantam CNC 4 Axis Maching Centre
- Table size 1700mm x 600mm
- Longitude Travel (X axis) 1500mm
- Cross Travel (Y axis) 700mm
- Vertical Travel (Z axis) 1100mm
- Heavy duty spindle with high pressure through spindle coolant
Quantam CNC Slotting Machine
- Stroke 350mm
- Vertical Ram Travel 320mm
- Working Table 560mm
- Longitudinal Travel of Working Table 432mm
- Cross Travel of Working Table 432mm
- Swivel Angle of Head 30
Conventional Machine Tools
- Tool and Cutter Grinder
- Surface Grinder 1000mm x 400mm Table
- Centre Lathes 3000mm x 1060mm Over Bed 720mm Over Saddle
- Vertical Drilling Machines
- Bridgeport Universal Milling Machine
- Cincinnati Universal Milling Machine
